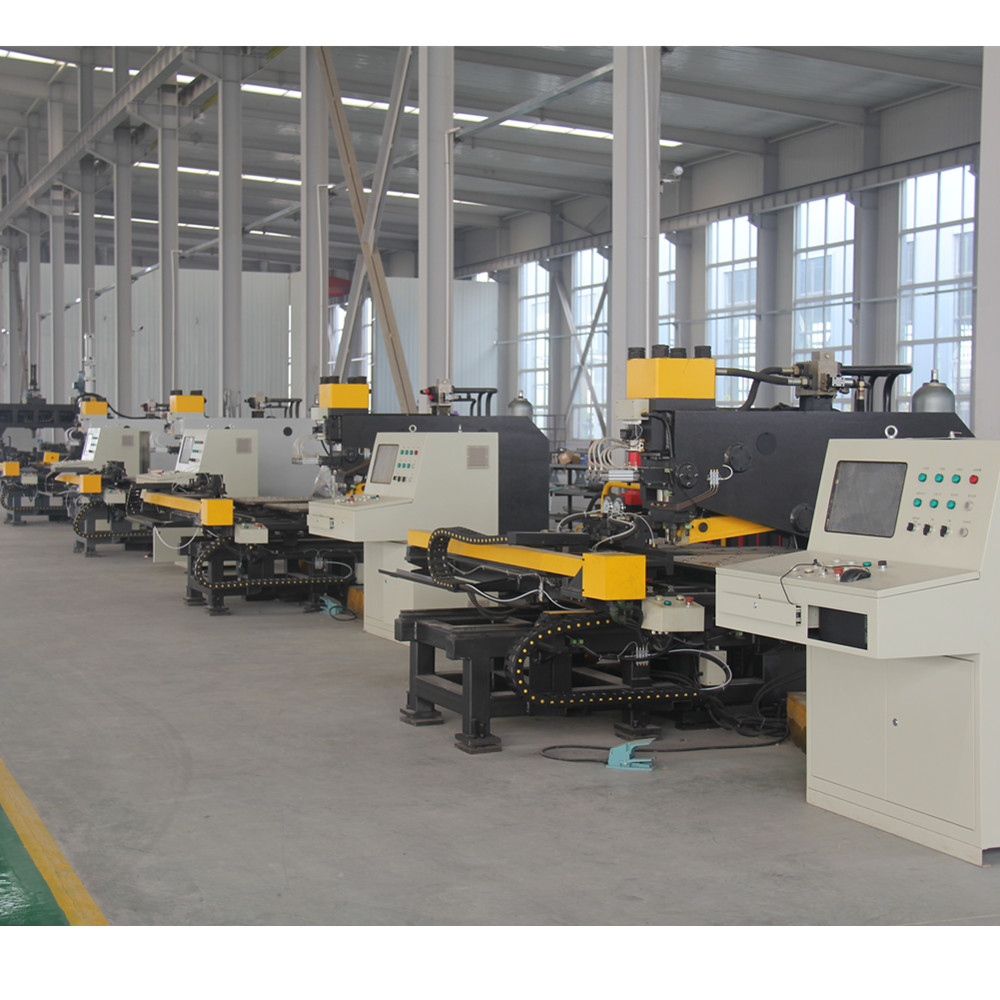

Heavy Duty CNC Steel Plate Marking Punching Drilling Machine CPD123

FEATURE AND ADVANTAGES:

· C shape framework features great rigidity and spacious working area.

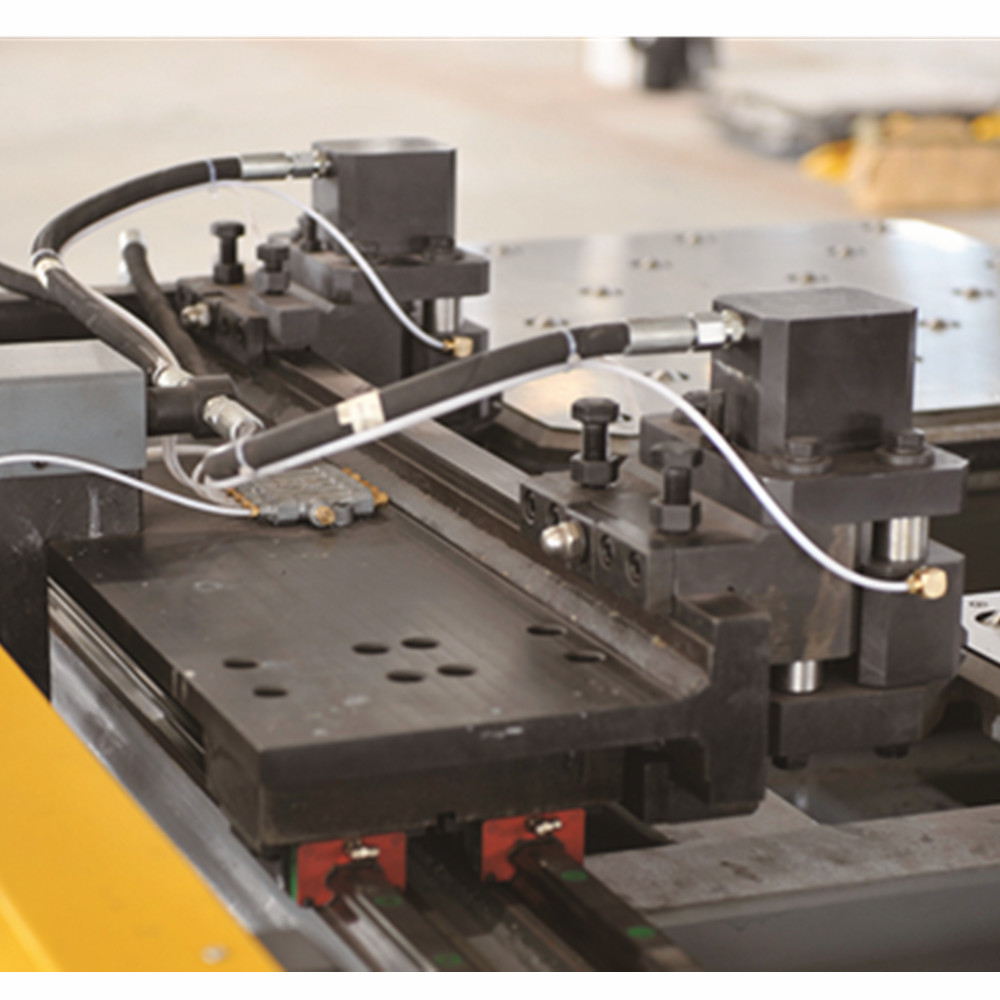

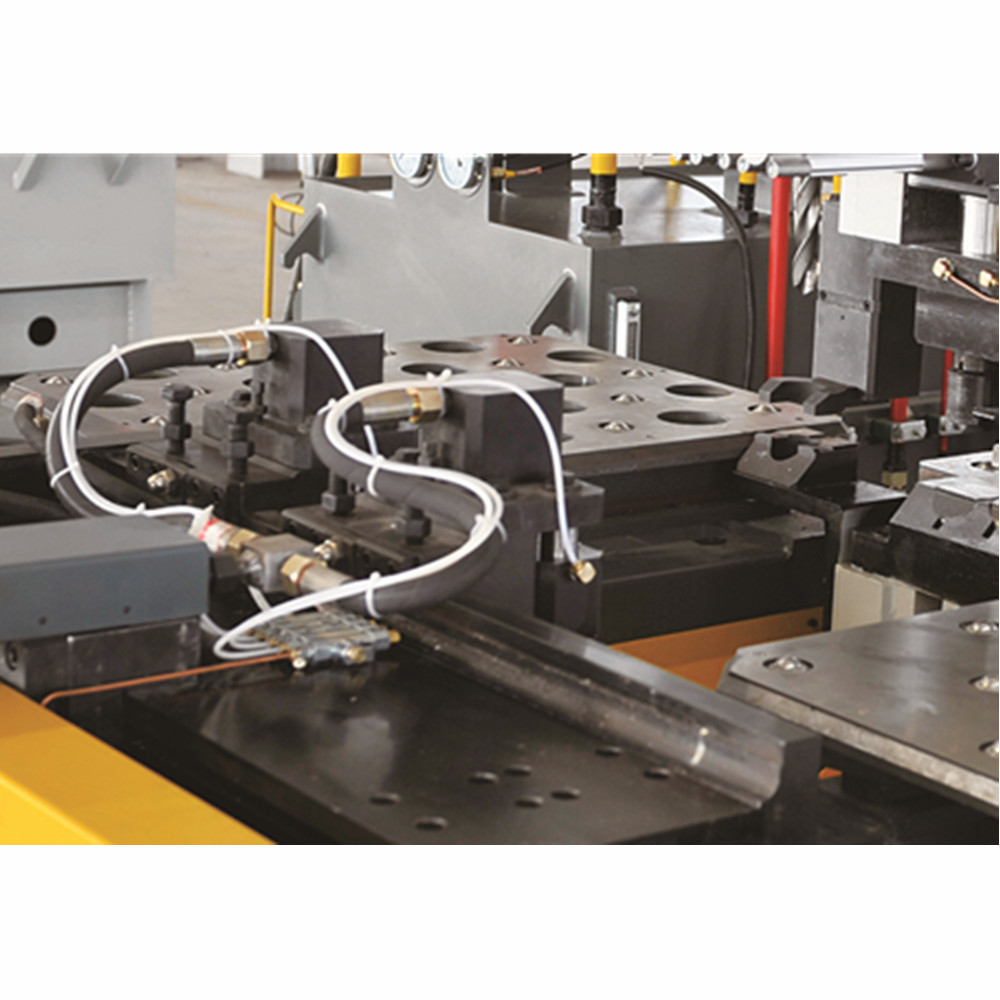

· There are four working stations,Stations can change automatically. The clamp system is suitable for workpiece with different thicknesses. There is stop locater at zero position. Workpiece is supported by working table with rolling balls.

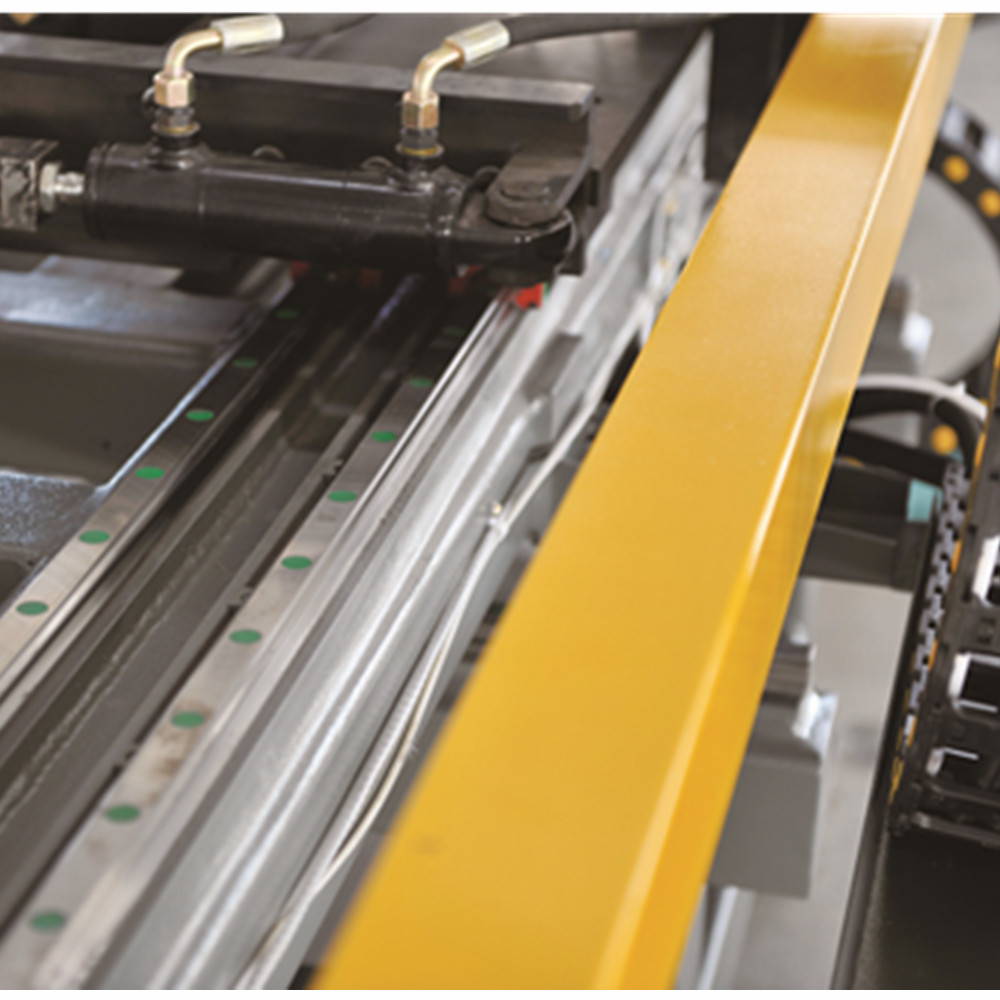

· X and Y axis are driven by servo motor and ball screw. The punching position is controlled by bi-axis CNC controlling system. The Processing data can be input into the controlling system and the processing can be done automatically .And the data inputted can be used for next times.

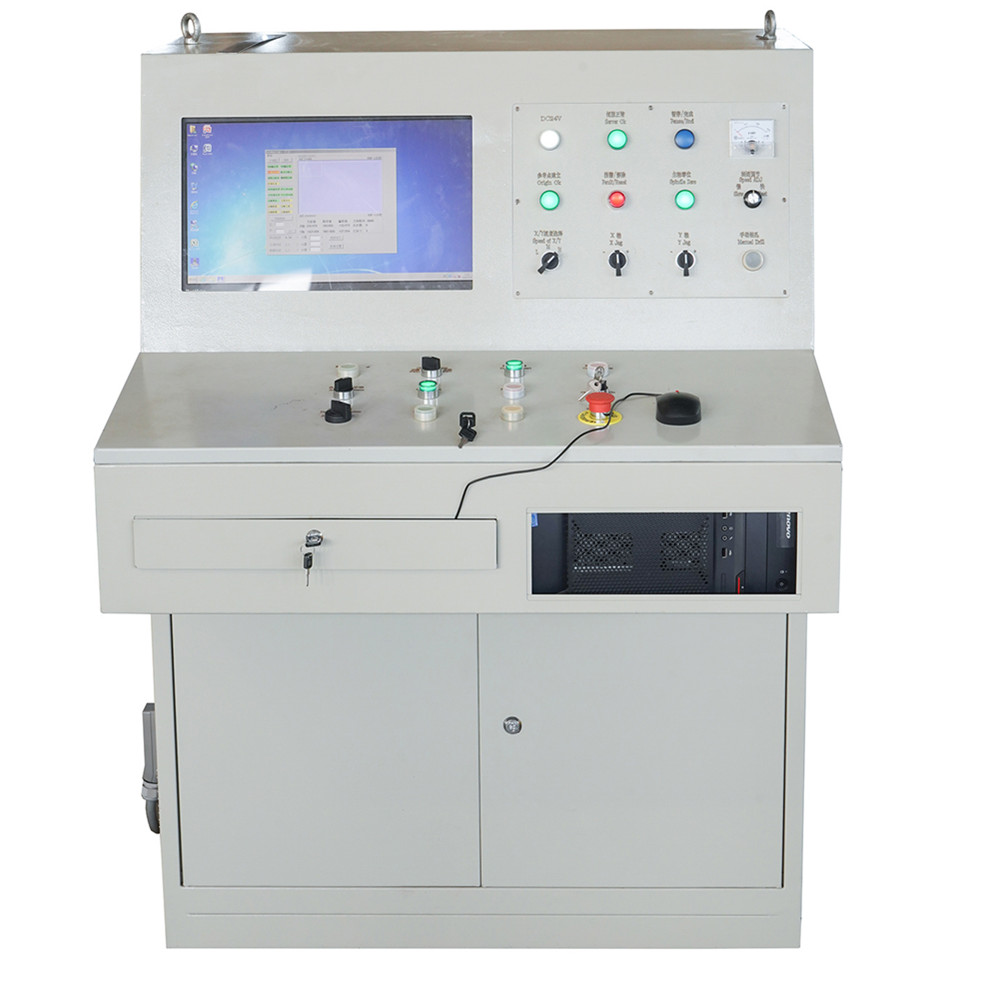

· Integrated machine with mechanical, electrical, and hydraulic system. PLC control and servo motor drive.

· Modular assembling for main functional parts, easy maintenance, self-diagnostic function.

· Punching, Marking and drilling operations on one plate with less labor force and steady precision.

· For programming, either input punching diameter, position and quantity of workpiece or directly share the date source of design department by the local network.


MAIN SPECIFICAITONS:

ModelCPD123
Punching force(kN)1200
Marking Force(kN)1000
Thickness of Punching/drilling(mm)6~25(Q420)
Max Dimension of workpiece(mm)1500×775
Max Diameter of punching hole(mm)Ф25.5(Q420)
Min Margin of Punching hole(mm)Up to diameter while drilling
Number of die-stations(piece)4
Dimension of character(mm)14×10×19
Character number(piece)10
Speed of X.Y axes(m/min)18
Max Diameter of drilling(mm)Φ50
Max Thickness of drilling(mm)40
Feeding speed of Main Axis(mm/min)25-280(Stepless Adjustment)
Speeds of drilling spindle(r/min)0-560
Stroke of drilling spindle(mm)180
Power of drilling spindle(KW)5.5
Process PrecisionAccordable With GB/T2694-2010
Hydraulic Pressure(MPa)5.5
25
Air Supply pressure(MPa)0.5~0.8
Total Power(kW)≈25
Overall Dimension(m)3.0×2.5×1.9
Net Weight(kg)Appr.8500
