FEATURE AND ADVANTAGES:

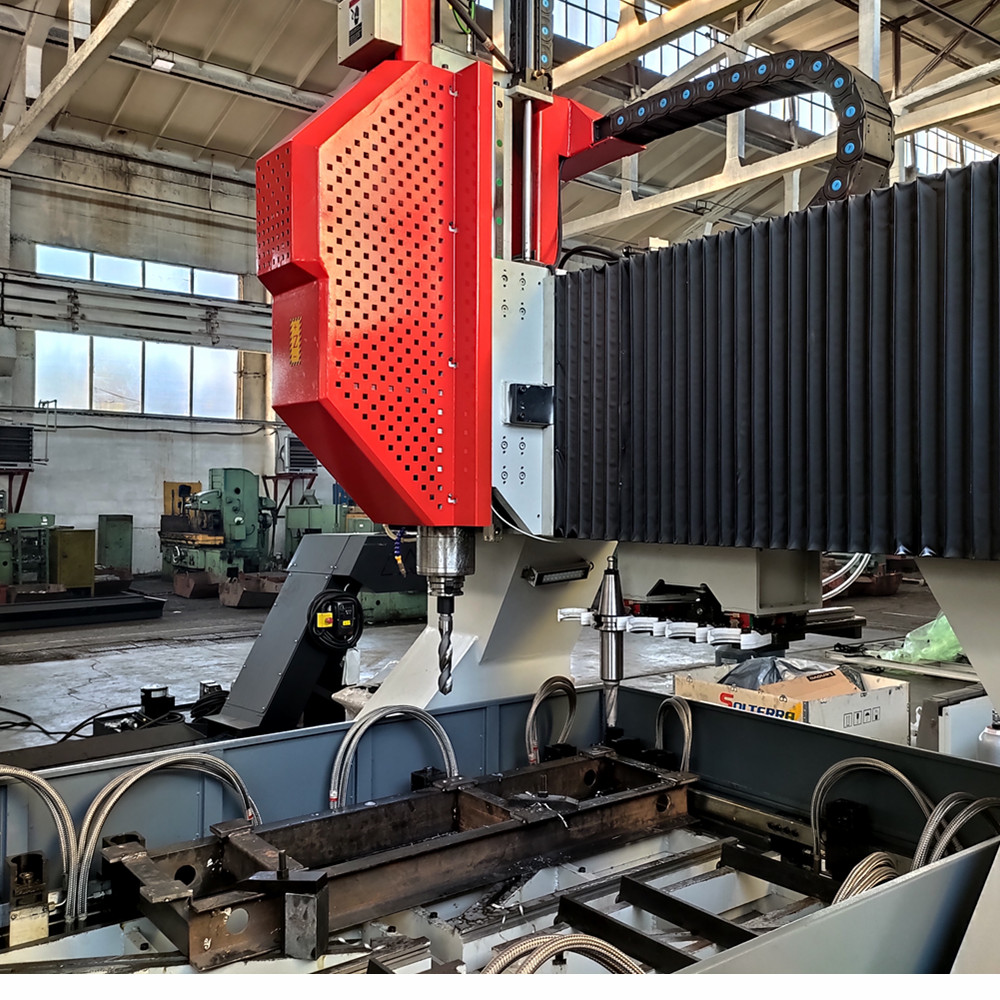

· CNC slide way drilling spindle (Z axis) with work piece of stroke is pre-set, realized auto switch. It can drill not only through-hole, but also blind-hole with high efficiency, simple-structure, low-cost maintenance, easy operation etc.

· There are 12 hydraulic clamps & T slots for fixing workpieces, easy to operate, also save time, improve production efficiency.

· This machine have three CNC axis: gantry moving direction (x-axis);drilling head moving direction (y-axis); Spindle feeding direction (z axis). Machine equip each axis with linear guide and ball screw which drived by high precision servo motor.

· Machine have scrap cleaner which collect iron scraps and cutting liquid.

· The machine equipped with automatic lubrication system for linear guides and ball screws.

· Machine adopts SIEMENS 808D system, also equip with computer for drawing and workpiece program processing, easy to operate.

· The configuration of the machine, like ball screws, linear guides, main electrical parts, servo motors, inverter, etc., all famous brands.

MAIN SPECIFICAITONS:
