FEATURE & ADVANTAGES

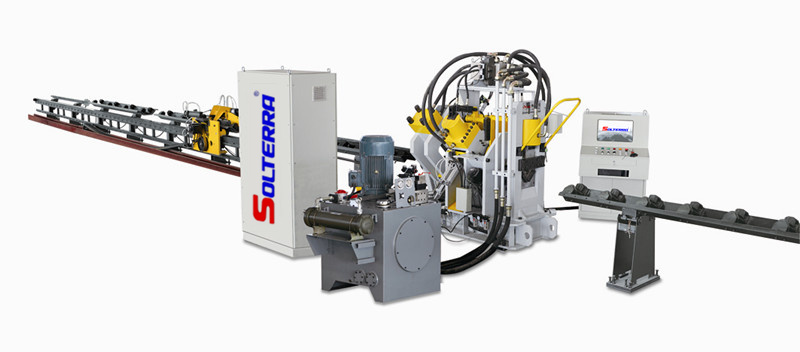

· The machine is professional automatic equipment for marking, punching and shearing of angle bar of power and telecommunication angle steel tower.

· The processing range of angle bar from L40 x 40 x 3 to L140 x 140 x 12, and length within 12000mm.

· The production line includes 6 units: material-loading unit, feeding unit, main body, finished products conveyor unit (automatically tilting unloading system), hydraulic power unit & electric control unit.

· Good rigidity, compact structure, optimal workpiece arrangement and high using rate of workpiece.

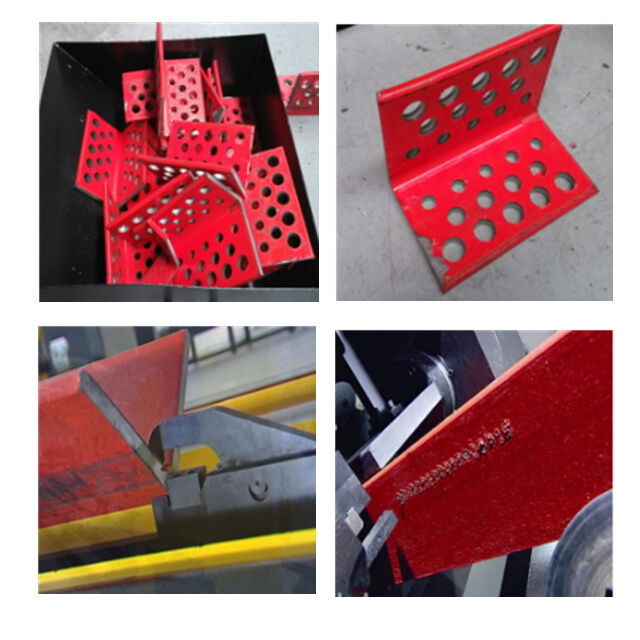

· Marking, punching and shearing are automatically operated with high efficiency.

· Friendly computer interface can show workpieces’ figure, easy for operation.

· Easy programming, only need to input the data of workpiece, including size, hole diameter, stadia accuracy and quantity. Or use the programming data created by lofting software.

· Many solutions are adopted to resolve problems such as infeeding difficulty and stadia accuracy error which are caused by angle steel deformation.

· With CNC and serve motor achieves it high efficiency and stable working accuracy.

· The key hydraulic pneumatic and electrical elements are all imported from Germany, Japan, and South Korea etc.

 MAIN SPECIFICAITONS
