FEATURES

· Four CNC axis control

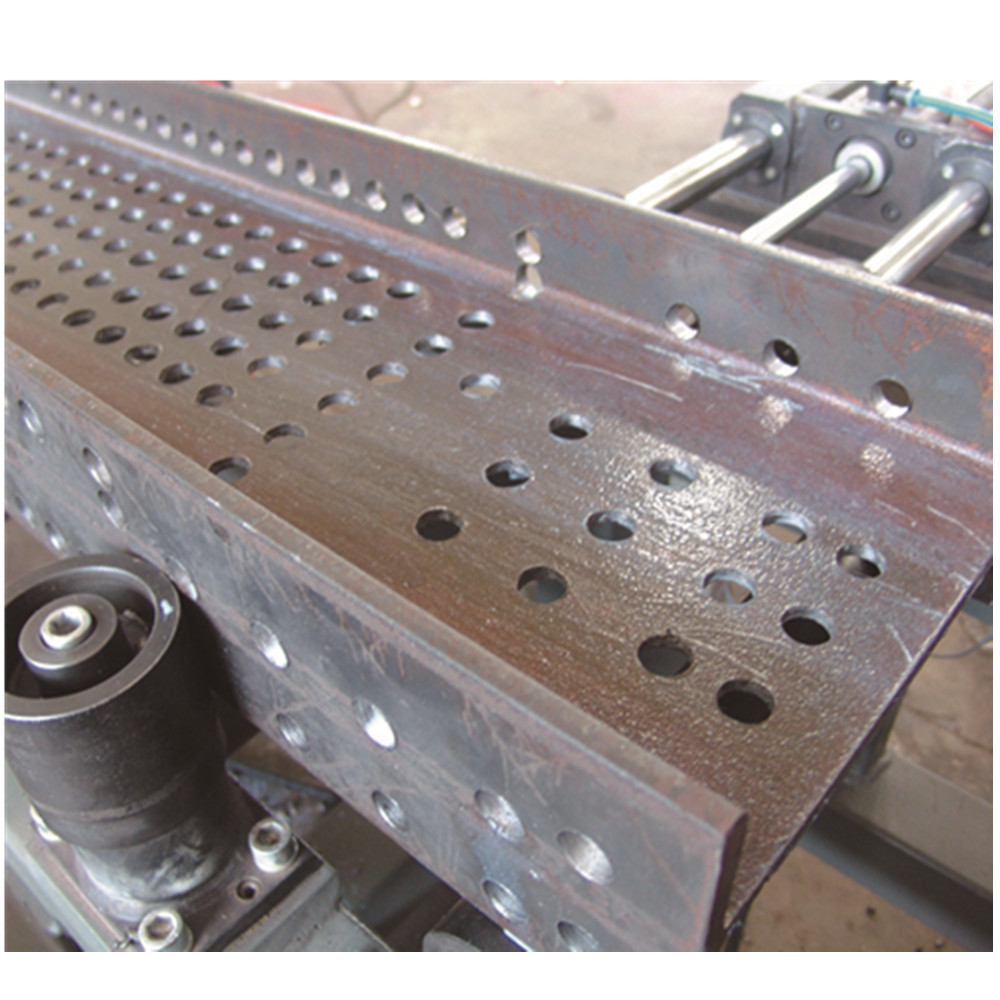

· Drilling on three sides of H-beam simultaneously

· Direct conversion between CAD and CAM is available.

· Ideal equipment used for steel structure processing.

ADWANTAGES

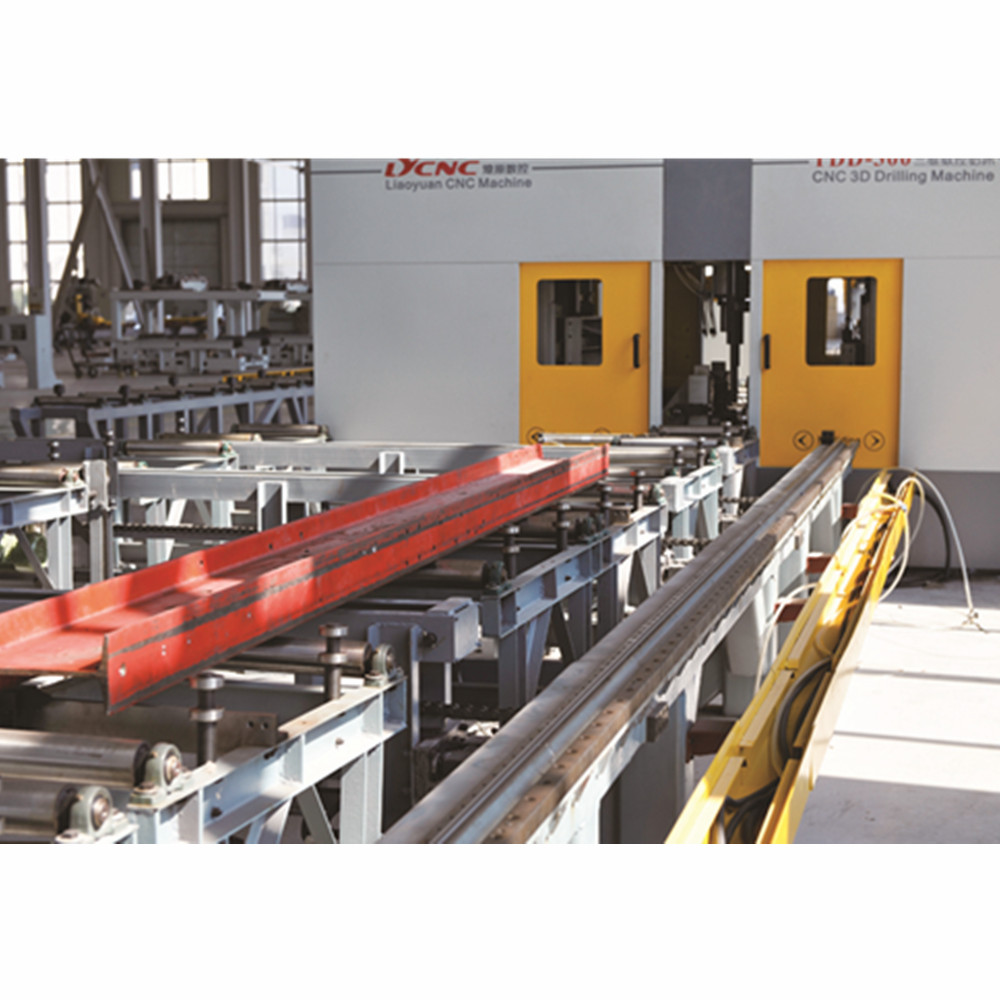

· Roller feeding and lengthways CNC measurement are used.

· The use of imported spray cooling system can prolong life of the drills.

· All spindles adopt the self-controlled travel drilling head. Three different diameters of drill bits can be installed in each side to achieve high efficiency. Nine drilling head can drill holes simultaneously

· No need to set thickness of work piece and length of drilling, automatically finish the transfer of rapid feeding and work feeding, and with high efficiency.

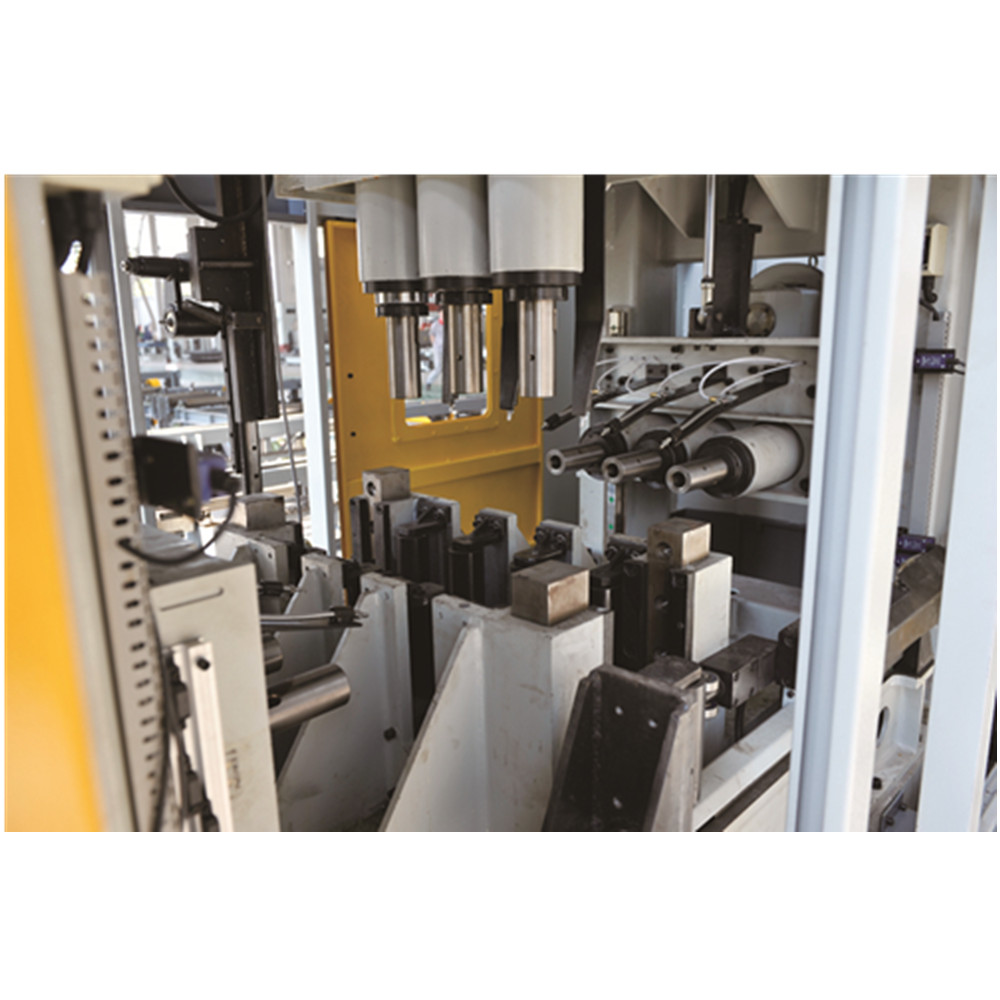

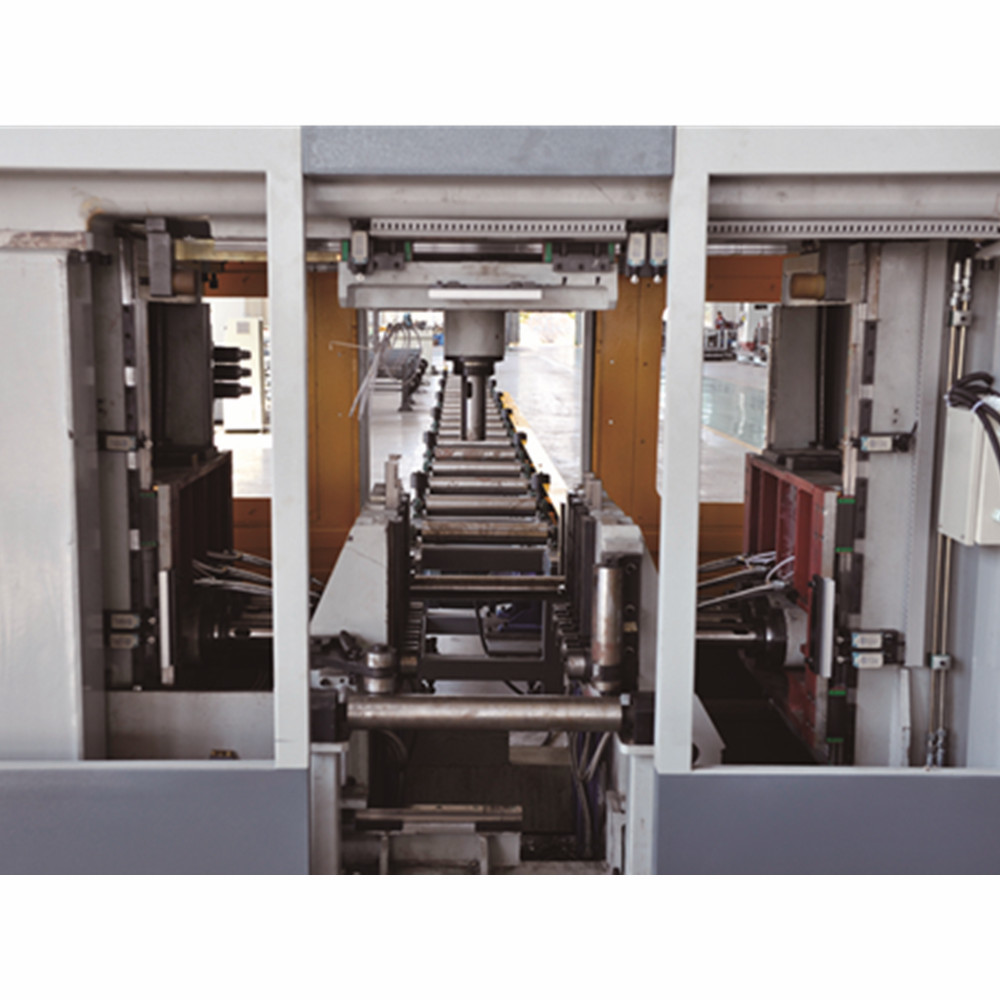

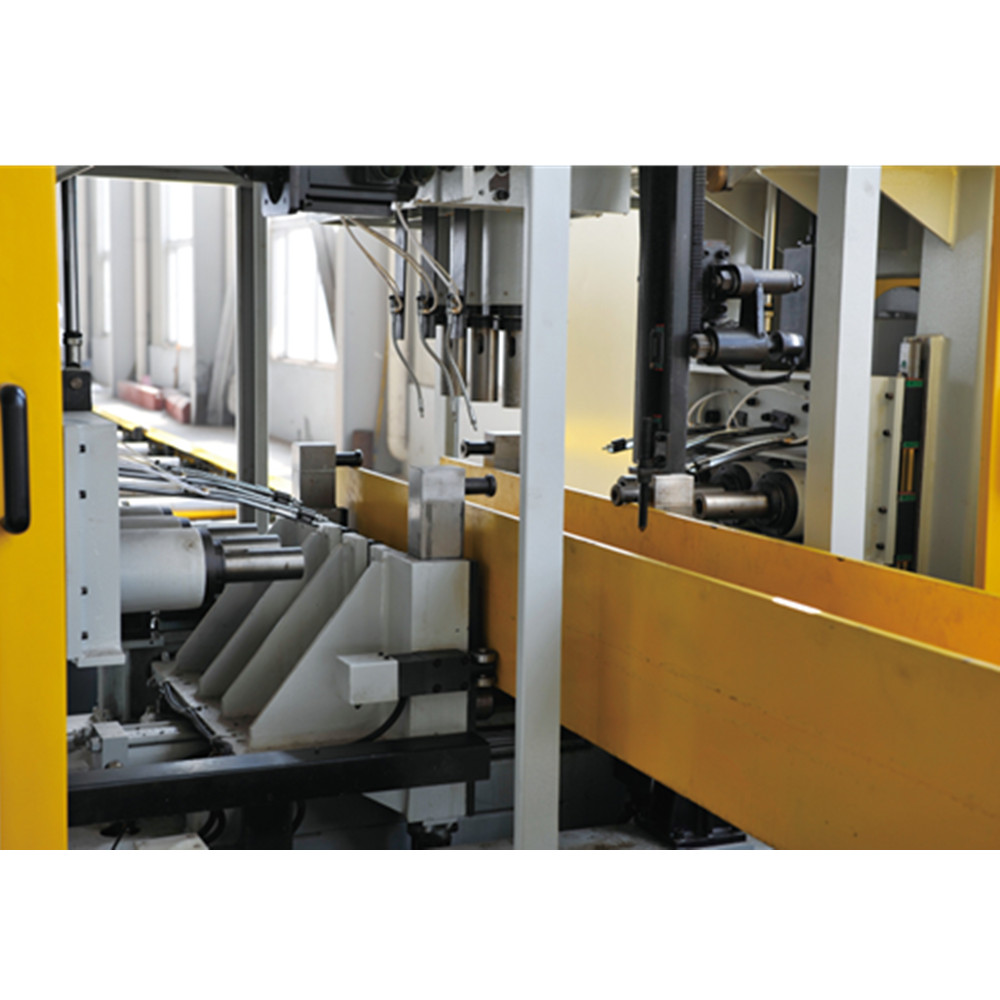

· This machine has 3 drilling spindle Box; left, Right side in Horizontal direction and Top side in Vertical direction. Can drill holes both on horizontal and vertical direction. Each spindle can drill separately but also simultaneously.

· Each drilling spindle Box has 3 main shaft of Hydraulic automatic control stroke, it can be equipped with 3 different diameter bit, can drill 3 different diameter of holes automatically one time.

· The spindle speed of each drilling spindle box is regulated by the frequency converter, and the feed speed is regulated by stepless speed regulation.

· Main machine, hydraulic pressure, electric components are famous products domestic and abroad.

 MAIN SPECIFICATIONS
