In April 20 2020, Jinan Liaoyuan Machine Co., Ltd dispatched one set of CNC H beam drilling machine TDD1250 and one set of CNC steel plate marking punching drilling machine CPD103 to Vietnam
2022-02-11

In April 20 2020, Jinan Liaoyuan Machine Co., Ltd dispatched one set of CNC H beam drilling machine TDD1250 and one set of CNC steel plate marking punching drilling machine CPD103 to Vietnam


1. The feature of the machine


1.1CNC H bean drilling machine TDD1250

Seven CNC axes

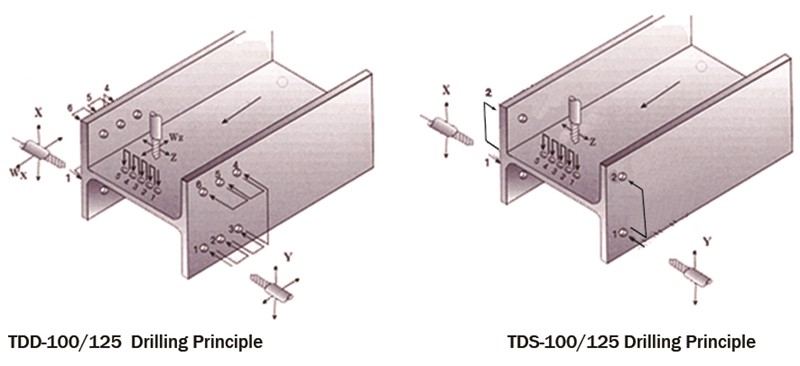

Simultaneously drilling on three sides of H-shaped steel

Directly transfer from CAD/CAM

Ideal drilling machine for steel construction fabricator




1.2 CNC Steel Plate Marking Punching Drilling Machine CPD103

C shape framework features great rigidity and spacious working area.

There are four working stations, Stations can change automatically. The clamp system is suitable for workpiecewith different thicknesses. There is stop locater at zero position. Workpiece is supported by working table with rolling balls.

X and Y axis are driven by servo motor and ball screw. The punching position is controlled by   bi-axis CNC controlling system. The Processing data can be input into the controlling system and the processing can be done automatically .And the data inputted can be used for next times.

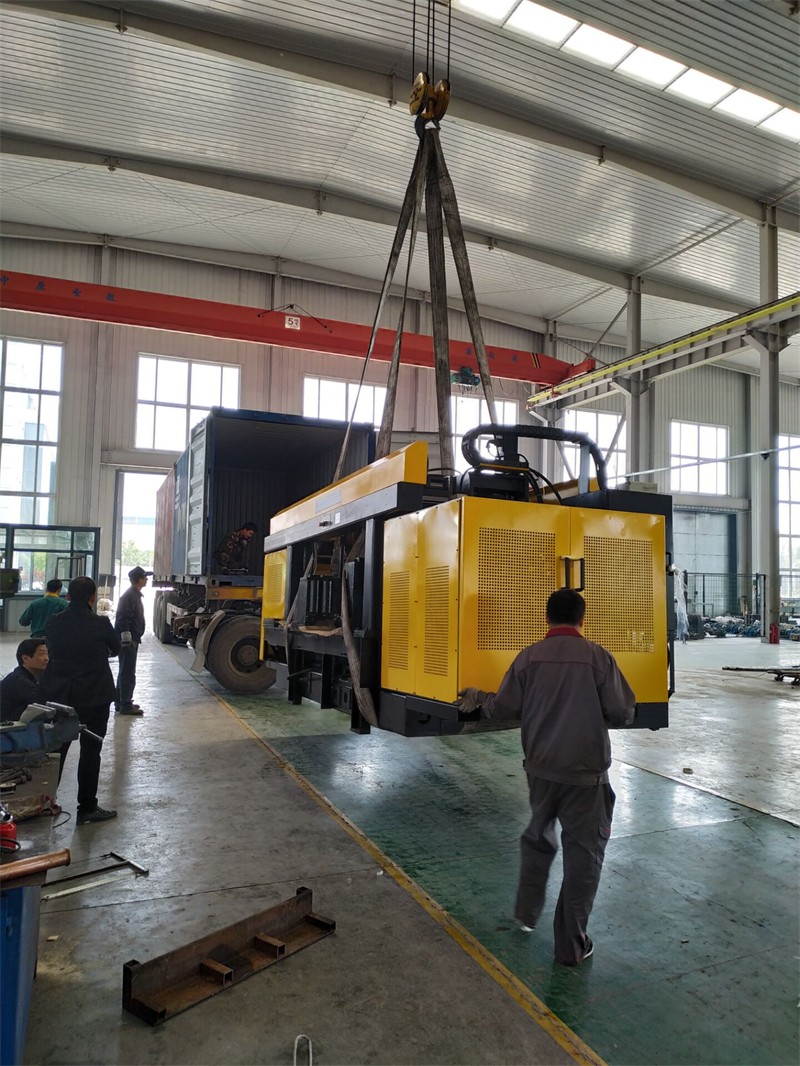

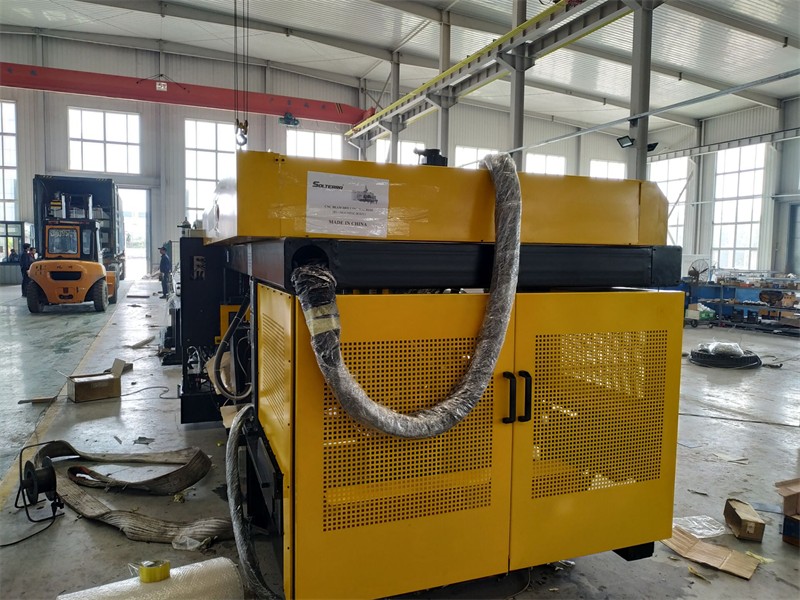

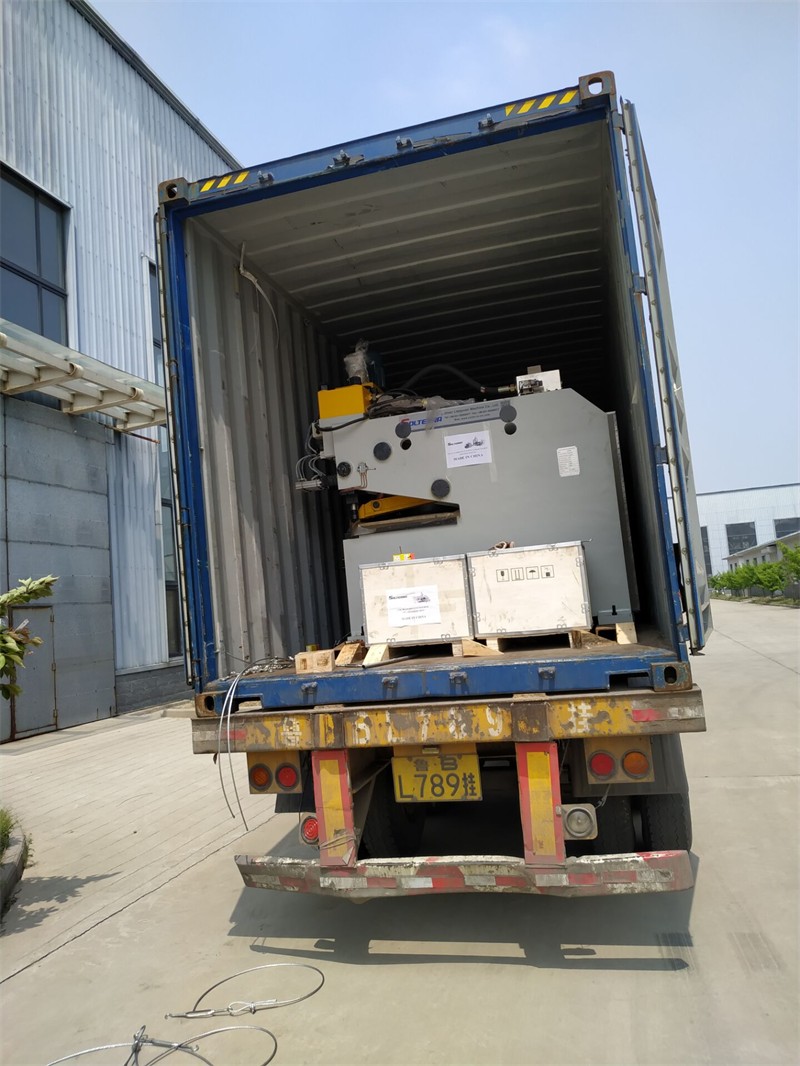

2. Loading photos
